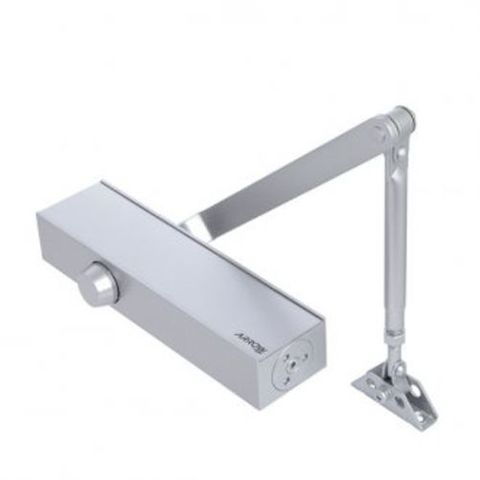

YALE DOOR CLOSER 2-6 DELAYED ACTION
Description
Yale Y2600 Series Power Adjustable Door Closer
The YaleY2600is the complete door closer in one. It will cater for a wide range of applications, with power adjustment from sizes 2 to 6, fire rated with built-in delayed action and back-check making this door closer ideally suited for exterior doors, high traffic areas and installations affected by adverse weather conditions.
Slim neat design will complement most applications.Each pack contains inch Zinch Type Parallel Bracket.
Features
Closer spring power is adjustable for sizes 2-6
High pressure diecast aluminium body. Heat treated steel rack and pinion. Forged steel arms passivated against corrosion.
Backcheck is standard on this model
Delayed action via independent valve control between 180 - 80 closing. Ideally suited for disabled door applications.
Rack and pinion mechanism design
A built-in pressure relief valve protects the closer against rough use and overload
Non-handed. Suitable for left or right hand doors
Two control valves to adjust latching and closing speed
Drop plate available in this series Order arm assembly separate Y2600-180SIL
Available in this series. Hold-open between 80 - 180. Order arm assembly separate Y2600-224SIL
Fire rated
This Yale Door Closer has been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Door sets.
Please refer to the door manufactures approved products list.
NOTE: Hold-open option is not approved on any fire door.
Finish
Silver SIL
SEE ALSO MN - 8626
