LEGGE ALPHA EXTERNAL PLATE & TURN W/INDICATOR SCP
Description

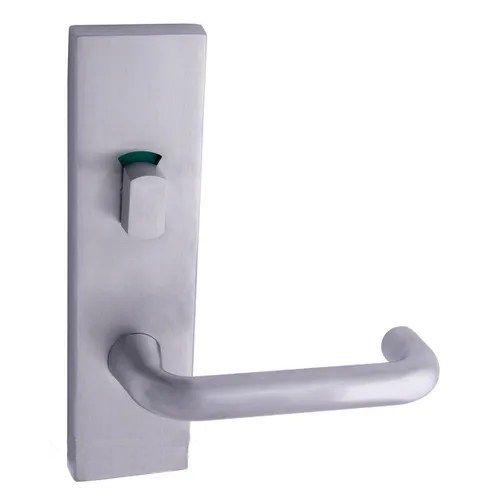

Legge 700 Series - 704IND Alpha Lever on External Plate with Turn knob and indicator.
Made specifically for commercial applications, the Legge 700 series has been designed to live up to the rigours of day to day use. Such applications include interior and exterior doors for educational, government, public, healthcare buildings. The Legge 700 series is constructed from commercial grade quality components, with forged brass levers and plates.
Compatible With Australasian 60 To 127mm Backset Mortice Latch Series.
Plates Are Designed To Fit Back To Back I.E. If The External (Ext) Plate Is Specified With Concealed Fixing, Then The Internal (Int) Plate Must Be Visible Fixed;
External Plates Are Supplied With Fixing Screws To Suit Door Thickness Between 32 And 50mm.
Satin Chrome Finish
SPECIFICATIONS
Plate Size 172h x 46w x 11d (mm)
Door Thickness 32-50mm
Screw fixing spacing 158mm
Base Material Forged Brass
Mechanical Warranty 30 years
SPECIAL ORDER ONLY
