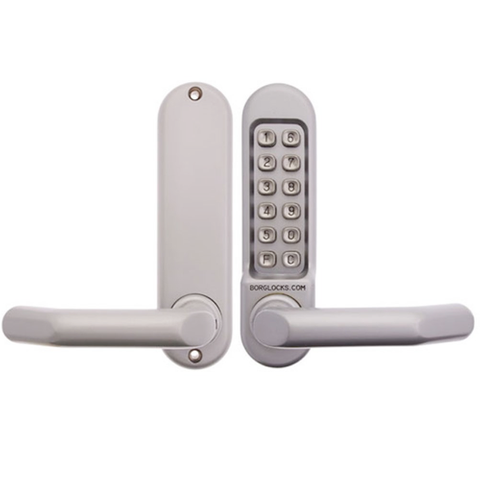

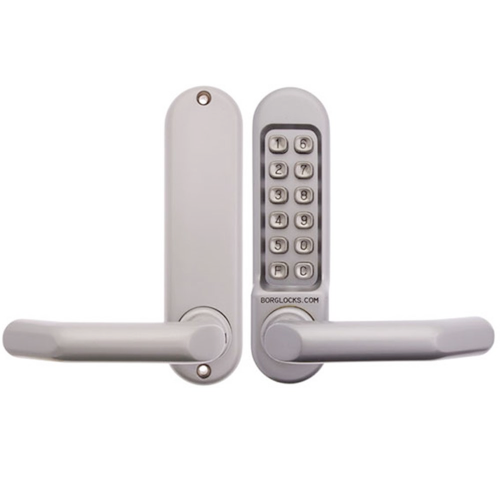

BORG DIGITAL LOCK LEVER / LEVER
Description
BORG DIGITAL LOCK 5001 SC LEVER/LEVER
The BL5000 series are designed for light to medium duty applications. Its full size lever handles with rubber insert for soft grip combined with its large 10 digit keypad enables the 5000 to control access in a wide variety of applications.
Other key features clutched handle which protects against forced entry and lock damage, optional free passage function, an 8 mm square drive so it can operate a wide range of leading brands of lock.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
BL5000 series without passage function, with F tumbler replaced by a coded or non-coded tumbler - number of combinations = 2048
BL5000 series with passage function - number of combinations = 1024
Fully mechanical digital lock.
60 mm heavy duty tubular latch.
12 mm bolt projection.
Full size lever handles with soft grip rubber insert.
Clutching lever protection.
Optional passage function (if required).
Large indented buttons for ease of use.
Fully reversible.
Easy code change procedure.
Suits doors from 35-54 mm thick.
Up to 2048 codes to choose from.
Designed for light to medium usage areas
Not suitable for use in high traffic commercial areas.
Suitable for internal use.
Fire rated.
Finished in satin chrome.
