YALE DIGITAL LOCK WI FI CONNECT PLUS HUB 2
Description

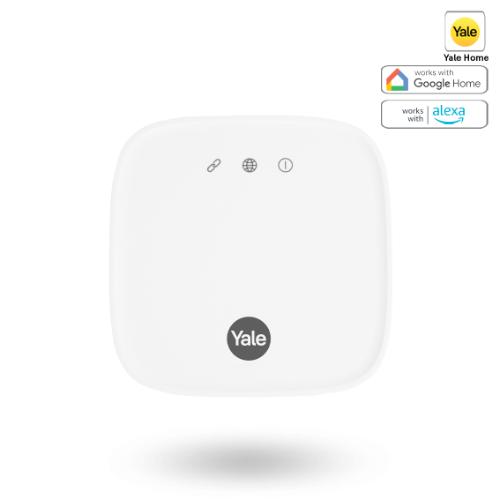

Yale Connect Plus Hub 2
The Yale Connect Plus Hub 2 allows you to access multiple Yale smart home locks and window actuators from wherever you are. Monitor the status of your home, lock or unlock and more using your Yale Home App from anywhere. The Yale Connect Plus Hub 2 allows your Yale smart home devices to work with Amazon Alexa, Google Home and more.*
*Please check if your specific Yale smart home device works with Alexa or Google Home on the Yale website before purchase.
Features
One App, From Anywhere: Monitor the status of your home, lock or unlock and more using the Yale Home App
Grow your Yale Home Automation: Supports up to 16 Bluetooth and 30 Zigbee Yale smart home devices
Coverage for the Entire home*: Designed to support Yale smart home devices throughout your home, freeing up power points by having multiple devices connected to the one Hub
Integrate with voice assistants and smart home ecosystems including Amazon Alexa and Google Assistant for hands-free control
Compatible with Yale Assure locks, Yale YDM mortice locks, Yale Unity locks, Yale Smartlatch2, Yale Smart safes and Yale Aeron window controllers
QR code for quick access to Yale Home App
Can be wall mounted
Supplied in retail box
*Home size, layout and building materials can impact performance. Larger sized homes may require additional Yale Connect Plus Hub 2 devices for full coverage.
Specifications
Material: Plastic
Body size: 80mm x 80mm x 30mm
Net weight: 65g (Hub alone)
WiFi: WiFi 802.11b/g/n 2.4GHz networks; please make sure your Wi-Fi router broadcasts a 2.4 GHz network
Bluetooth: BLE 5.0 2.4GHz
Zigbee: Zigbee 3.0 2.4GHz
Power adapter included: USB-C / 5VDC, 1A
Basic function Hub/Bridge for BLE and Zigbee multi-devices
Certification?: FCC/IC/BTSig/CE/RCM/RoHS
LED Indicator Functions
1. Power LED
• Solid LED = Hub is powered on
• Slow flash LED = Hub is searching sub-devices
• No LED = Hub is powered off
2. Wi-Fi Connection
• Solid LED = Hub is connected to Wi-Fi router
• Slow flash LED = Hub is in Wi-Fi connect mode
• Fast flash LED = Firmware is being updated
• No LED = Hub can’t connect to Wi-Fi router
3. Server Connection
• Solid LED = Hub is connected to Yale Home Server but there is no data being communicated at the time
• Slow flash LED = Hub is communicating with Yale Home Server
• No LED = Hub can’t connect to Yale Home Server
Note: if all 3 LEDs blink consecutively then the Hub is currently undergoing a factory reset
Finish
Snow white
