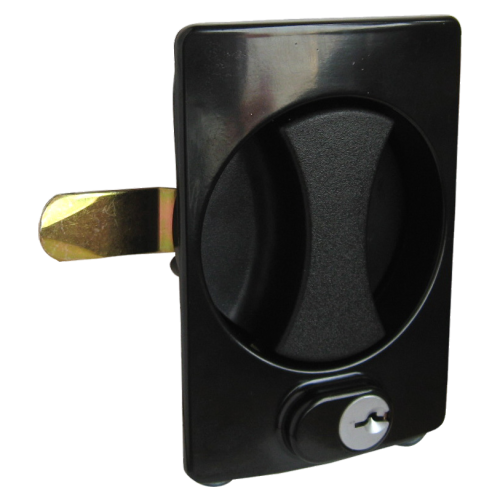

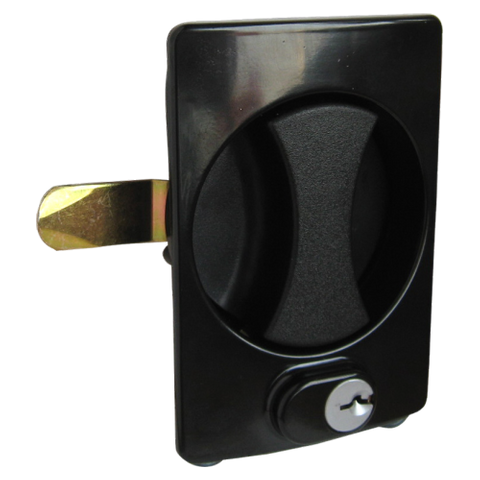

FLUSH HANDLE LW4 A/HFC4/KD/6L/F1
Stock Code:
LF FLUSH C4
Description
Flush handle - Horizontal
LW4 Keyway
This lock is ideal for use on doors. It features 3-point locking. The first point is at the cam, the second and third are at the end of the locking bars.
The locking bars are fitted to two pins on the cam and held on by a rod retention swivel clip.
The key can be removed whether the grip’s 50º rotation is locked or unlocked.
Cam type is 22mm diameter from panel to cam - mounting on left edge of door.
- Zinc alloy diecast pan - black finish
- Zinc alloy diecast grip - chrome-plated
- 18 mm rod throw when fitted to cam
- 50º rotation of cam and grip
- One pair of nickel-plated keys per lock
Locking bars also available
Stock Level:
In Stock
