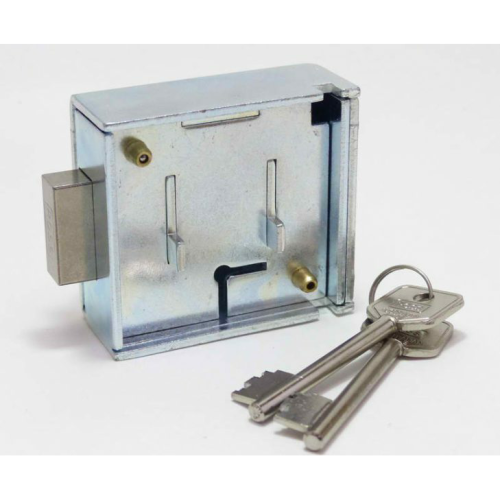

ROSS LOCK SAFE LOCK RIGHT HAND SPRING LATCH
Description
LR 600 AL - Right Hand Latch
The arrival of the 600-Series Safe Lock in 1990 provided the opportunity to present an advanced safe lock design that endeavours to eliminate the conventional lock weakness and obstruct the traditional opening and drilling intrusion techniques.
PRODUCT BENEFITS
The introduction of the vertical lift levers, housed and anchored securely between the steel lock-case and lock-cap, restricts a forced entry.
The lever housing prevents a lever pack collapse against bolt-head pressure.
The cruciform wall design protects the gating-stump and shrouds the lever pack from interference.
The centralised bolt-tail protects against a gate-drilling intrusion, and makes it difficult to pick the bottom (3) levers.
The centralised bolt-tail also enables the reverse handing of the lock in the field.
The consistent contoured belly profiles on the levers resist optical/impression intrusion techniques.
Ball bearings fitted into the screw-bearers makes penetration by drill very difficult.
TECHNICAL SPECIFICTIONS
(6) pick resistant levers.
(1,000,000) possible key code combinations.
(2) single-bitted steel keys are provided.
(10) key lengths are available.
Key lengths are measured by the distance between the bitt-and-bow of the key.
Key lengths start from the 30mm (R30) key through to the 180mm (R180) key.
Key codes are read from the tip of the key to the ROSS embossed key bow.
ALTERNATIVE LOCK OPTIONS
A ‘Bolt-On’ lock version.
A restricted profile ‘Wave’ key version.
An (8) lever lock option.
