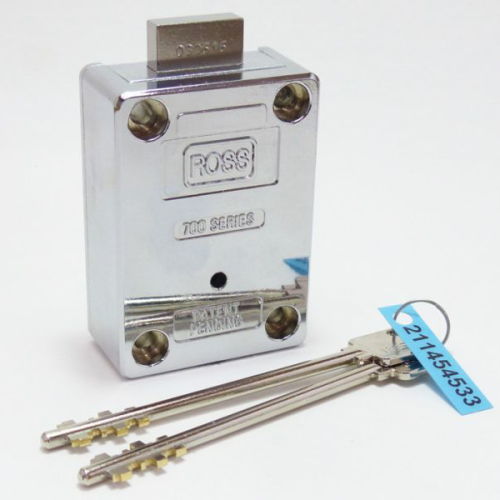

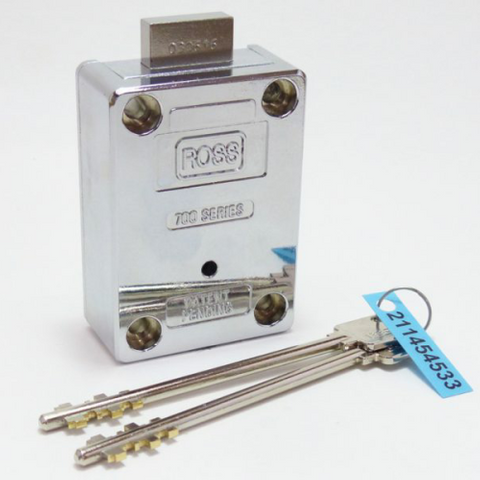

ROSS LOCK SAFE LOCK RETRO-FIT
Description
The 700-Series Safe Lock is an evolution on the 600-Series Safe Lock, in that it incorporates a key-stem centre-line and bolt-head design that makes it retrofit to the standard (3) wheel combination lock footprint.
PRODUCT BENEFITS
The smaller keyway section design provides a global interchangeable platform with dial and digital locking systems.
The lever housing is securely anchored between the lock-case and lock-cap and provides resistance against a jemmy attack and prevents a lever pack collapse associated with bolt-head pressure.
The vertical side-wall of the lever housing shrouds the lever pack and provides intrusion protection against modern burglary tools endeavoring to read the gates.
The cruciform design of the side-wall of the lever housing also serves as a bolt-runner and protects the gating-stump from attack.
The bolt-head is steeped down at the rear to prevent forceful extraction from its case.
The centralised bolt-tail makes picking more difficult, and the levers situated behind the bolt-tail are protected against a gate-drilling technique to align the gates.
There is no pivoting lever stump to drill-out and small consistent lever belly profiles prevents impressioning and key markings.
A Key-Code tag is always supplied with the lock to aid the registration/reorder process.
TECHNICAL SPECIFICATIONS
(9) pick resistant levers.
(1,900,000) possible keycode combinations.
(2) double-bitted brass keys are provided.
(7) key lengths are available.
Key lengths are measured by the distance between the bitt-and-bow of the key.
Key lengths start from 35mm (RDB35) key through to the 180mm (RDB180) key.
A key code is read from the tip of the key to the ROSS embossed keybow.
