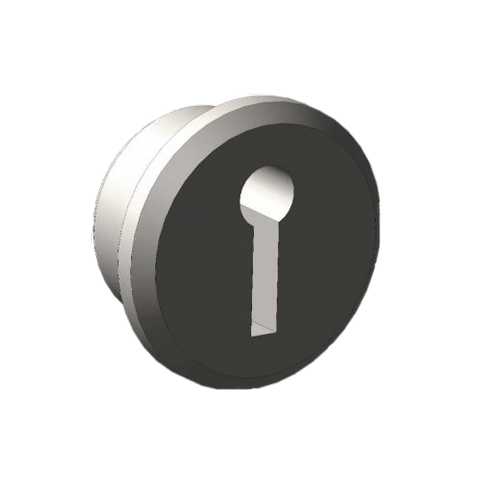

ROSS LOCK KEYHOLE INSERT 1/4
Stock Code:
LR KH14
Description
Single-Bitt-Keyway Key Hole Insert 1/4" (6mm)
The sintered single-bitt-keyway Keyhole Insert has the keyway totally enclosed within a 19mm round body with a 25mm diameter shouldered face.
These inserts will suit all 102, 600 and 900 series lock installations, and all ‘older’ series safe lock models.
To install simply drill a 19.0mm hole through the steel plate door, countersink the inside surface to allow for a strengthened weld joint, and then dress-off the surface and fit the lock.
Options include sintered 3, 6, 9, 12 and 22 mm inserts.
These length options are quoted relative to the inside shouldered face that sits flush to the door.
A 600-Series M/S 12mm restricted profile insert is also available.
Stock Level:
In Stock
