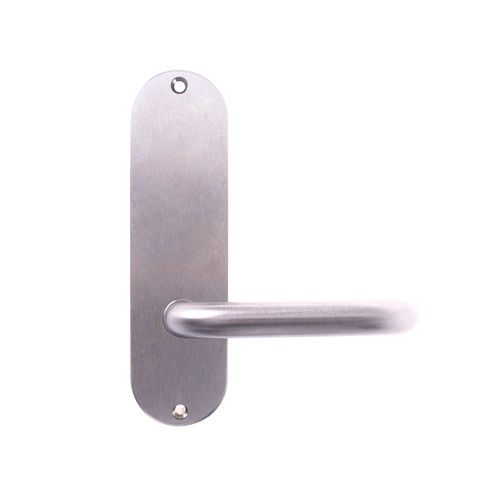

LOCKWOOD INTERNAL ROUND END FURNITURE (LEVER ONLY) SCP
Description
Lockwood 2800 Series Round End Plate Brass Furniture
Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.
The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
APPLICATION
Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
FEATURES
- Internal plate with 70 lever
- Visible fixings (screws not included)
- No Cylinder or turn snib
- Non-handed
- Dimensions 166mm(H) x 48mm(W) x 12mm(D)
- Cylinder pitch 64mm
- Fixing centres 148mm
- Supplied in trade pack
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
HANDING
Plates are not handed; Symmetrical levers may be reversed by removing stop screw.
FIXING
Plates are designed to fit back to back.
If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.
DOOR THICKNESS
External plates are supplied with fixing screws to suit door thickness between 32 and 50mm.
FINISH
Satin Chrome
