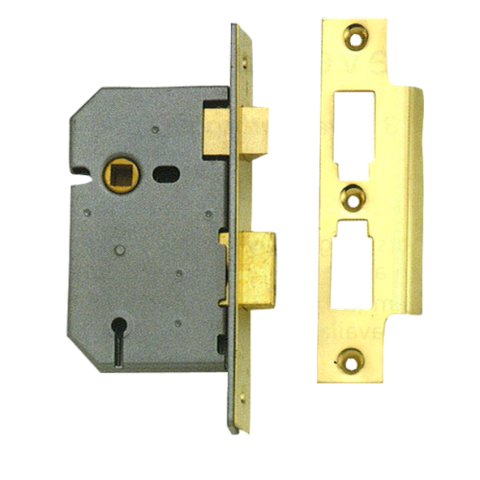

SO - UNION MORTICE LOCK 3 LEVER 64mm CASE PB DP - SPECIAL
Description
Application
For timber doors hinged on the left or right
Keys are suitable for use on doors up to 54mm thick
Specification
Deadbolt locked or unlocked by key from either side
Latch bolt withdrawn by lever handle from either side
May be keyed alike with 2077, 2157, 2177 and 2477 (not 51mm case)
Pierced to accept bolt through furniture
Case Size: 65mm (2.5")
Backset: 44.5mm
Case: Steel, silver powder coat
Deadbolt: Brass, hardened steel rollers
Latch Bolt: Brass, reversible
Follower: Brass, 8mm square
Supplied with 2 steel nickel plated keys
Key Blank Number: KB436
Keying:
2" = 36 standard differs (M1M - M36M)
2.5", 3" & 4" = 100 standard differs (M101M - M200M)
Available in SC, PL and CH finishes
Finish
PL - Polished Brass finish
Rebate Kit: 2979
