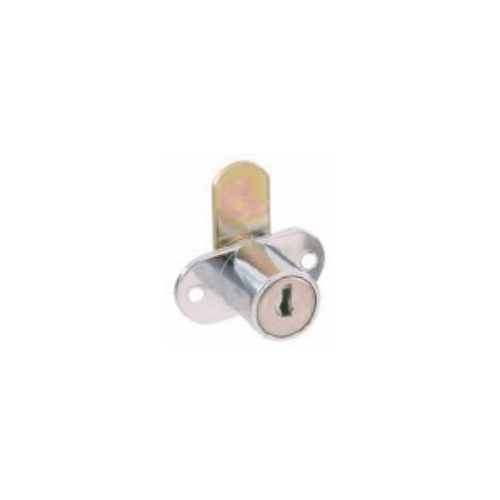

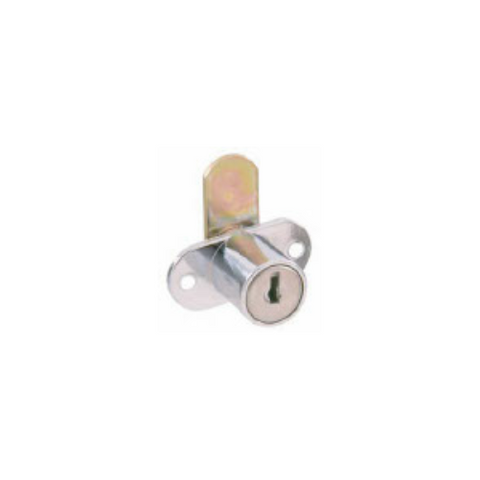

CYL CAM LOCK REAR FIX 17mm W/KIDNEY ADAPTOR (90 DEGREES)
Stock Code:
LF CAM5 R
Description
Cam lock - 17mm Rear fixing
Keyed to differ
This lock is ideal for use on drawers and doors. Rotating the key results in 90ยบ right hand rotary cam movement.
It fits into a 19.1mm diameter hole from the rear face of the panel. Screws then secure the lock from the back. Suits panels up to 19mm thick.
- The cam fixing screw can be removed and the cam repositioned
- Zinc alloy die cast housing
- Key removable in locked and unlocked positions
- Zinc-plated steel cam
- Stainless steel capped barrel
- One pair of nickel-plated keys per lock
- Optional bezel available - LF Bezel 01
Stock Level:
Low Stock
