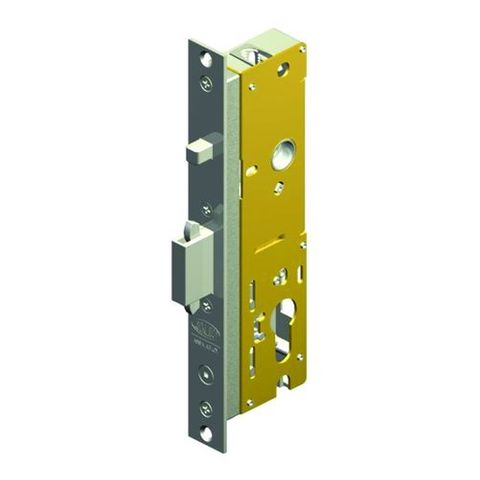

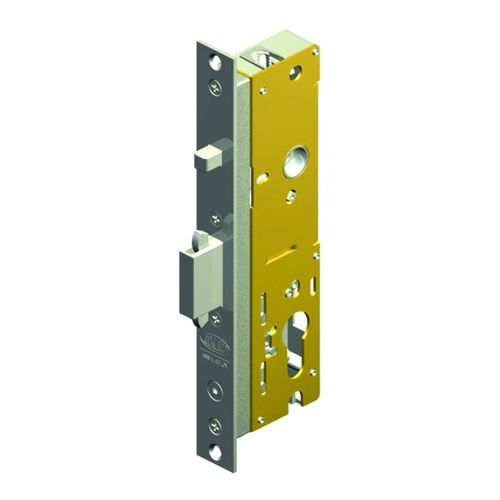

ASSA ABLOY OPTIMUM 3PT 40mm EURO SLIDING DOOR LOCK
Description
Optimum Mortice Sliding Door Lock - 40mm Backset
The Optimum Mortice Sliding Door Lock has been developed with features designed to significantly improve functionality in sliding door applications. The lock features the unique security of a single deadbolt with dual fly-out beaks, preventing the door from being lifted.
Features
Three points of locking from the deadbolt and 2 shoot bolts
Deadbolt locking
40mm backset mortice lock
18mm throw on the deadbolt
Standard rod length 1m + 1.3m available (not included)
Anti-lift design
Anti-slam pin protects accidental damage to throw prior to door closure
LockAlert™indicator shows at a glance if the door has been deadlocked (requires Palladium Xtra furniture)
Adjustable Strike
Stainless steel forend plate
Suits standard door thickness of 25mm to 70mm
Compatible with a range of Euro Cylinders (not included)
Can be keyed alike to other ASSA ABLOY CYL4™ 5-Pin locks for one key convenience
Achieves Australian Standards AS4145:1993 (Part 2) Security Level S1 and Durability Level D3
Identical standard routing details to other Optimum Mortice Locks
Retrofittable forend plate available for use where ISEO 7814 is being replaced
Supplied in trade pack
New Zealand made
Suitability
Suitable for use on aluminium, timber and uPVC doors.
