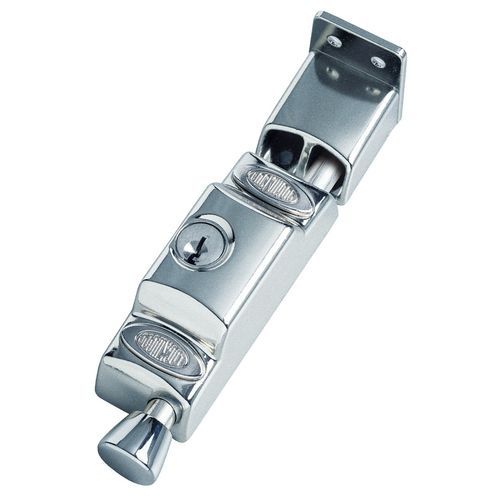

LOCKWOOD 680 PATIO BOLT SATIN CHROME
Description
The Lockwood 680 Patio Bolt is a strong, heavy duty, surface mounted product designed to improve security in a range of residential sliding and hinge door applications.
It is easy to install and has been designed to suit a wide range of aluminium and timber sliding patio and hinge door applications.
FEATURES
- Easy to install
- High purity high pressure zinc alloy case
- Steel, zinc plated bolt
- Concealed fixing by conventional cross recess head screws
- Solid brass 5 pin cylinder
- Can be keyed alike, master keyed, grand master keyed, maison keyed or construction keyed in Lockwood C4 5 and 6 pin, Generation Six and Twin keying systems
- Exceeds Australian Standard 4145.2-2008, Mechanical Locksets for Doors and Windows in Buildings, to Level SL6 - with standard length bolt, to Level SL4
SUITABILITY
A range of residential sliding and hinged door applications.
FIXING SURFACES
Timber
Metal
BOLT
Steel, zinc plated.
FIXING
Concealed fixing by Phillips head screws.
CYLINDER
Solid brass 5 pin cylinder.
KEYING
Standard Keying or Accepts LW G6 680 Plug
RESTRICTED SPECIAL KEYING
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
For example - LW Generation Six
Also available in White and Polished Brass
Long bolt also available - See LW 680 EXT BOLT
