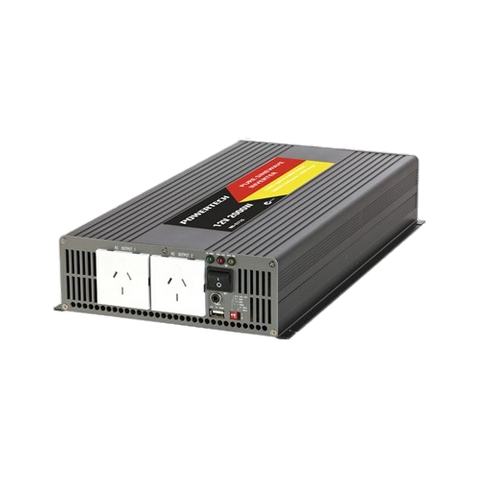

INVERTER MI5710 2000W - 12VDC P/S/WAVE
Description

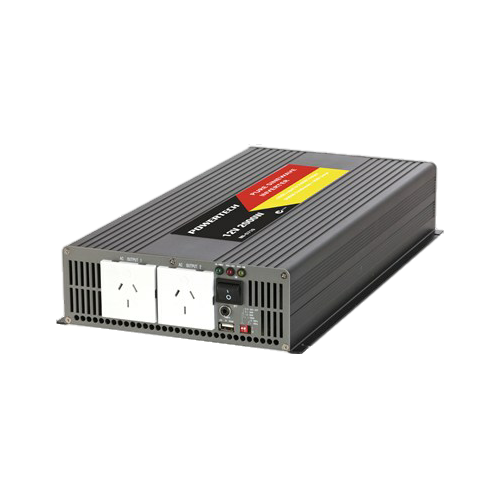

MI5710 Pure Sine Wave Inverter
A high end pure sine wave inverter is ideally required to operate electronic key machines in mobile van installations.
This new range of inverter includes advanced control logic which provides standard protection (overload, high temperature, over/under input voltage, and output short circuit) as well as a host of additional features to provide improved performance and reliability under adverse conditions. The control logic checks inverter and load conditions at start-up before applying power. It also applies a soft start feature which near eliminates the risk of inverter overload when large appliances with high in-rush currents are used. Overload detection and prevention uses a three stage alarm which acts as a timed warning so you can decrease the load before the inverter completely shuts down. High temperature protection automatically shuts the inverter down when it reaches a predetermined temperature, then restarts once the temperature has dropped to a lower level. A power saving mode can also be activated to minimise battery drain when the AC output falls below a set power threshold. When the threshold is reached the inverter is switched to standby substantially decreasing the standby current draw.
MI-5710 2000W Pure Sine Wave Inverter
• Current at no load: 960mA
• Current in standby mode: 230mA
• Power saving mode options: OFF, Input voltage: 12VDC
• Efficiency: 84-91%
• Output regulation: ±3%
• USB output: 5VDC @ 500mA
• Input connection: Heavy duty screw terminals
• Remote control: Wired 5m on/off switch with status light
• Output overload: Three stage alarm and shutdown
• Thermal shutdown restart: Battery low alarm: 10.6VDC ± 0.3VDC
• High battery alarm: 15VDC ± 0.3VDC
• Input overload: Internal 360A fuse
For Electronic Key Machines, this model is the recommendation as it is a pure sine wave inverter
The I104 model will still be sufficent in most cases
